| 光源类型 | LED |
|---|---|
| 光源功率 | 160（W） |
| 灯罩型式 | 针柱状 传统外壳 |
| 主要适用范围 | 道路 小区等 |
| 加工定制 | 是 |
| 电压 | 90-200 |
| 品牌 | nanker |
| 型号 | NKU-48/8-200/3-SE |

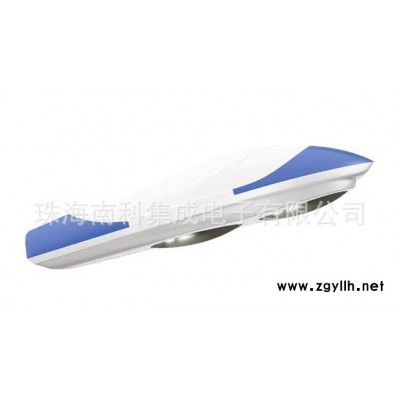

| 产品名称Name | LED路灯Street Lights | LED路灯Street Lights | LED路灯Street Lights | LED路灯Street Lights | LED路灯Street Lights |
| 产品型号Part Number | NKU-16/8-040/1-SF | NKU-32/8-080/2-SE | NKU-48/8-120/3-SE | NKU-64/8-160/4-SD | NKU-48/8-200/3-SE |
| 输入功率Input Power | 40W | 80W | 120W | 160W | 200W |
| 光源光通量Luminous Flux | 3200 lm | 6400 lm | 9600 lm | 12800 lm | 16500lm |
| 灯具光效Luminous Efficiency | 60 lm/w | 60 lm/w | 60 lm/w | 60 lm/w | 60 lm/w |
| 输入电压Voltage | 90VAC-260VAC (交流) | 90VAC~260VAC(交流) | 90VAC~260VAC(交流) | 90VAC~260VAC(交流) | 90VAC~260VAC(交流) |
| 工作电流Current | 100mA | 200mA | 300mA | 400mA | 350mA |
| 工作频率Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| 功率因数AC Power Factor | 98% | 98% | 98% | 98% | 98% |
| 有效功率DC Power Efficiency | 94% | 94% | 94% | 94% | 94% |
| 发光角度Beam Angle | 72°(50%)(横向Horizontal) 127°(50%)(纵向Vertical) | 72°(50%)(横向Horizontal) 127°(50%)(纵向Vertical) | 72°(50%)(横向Horizontal) 127°(50%)(纵向Vertical) | 72°(50%)(横向Horizontal) 127°(50%)(纵向Vertical) | 72°(50%)(横向Horizontal) 127°(50%)(纵向Vertical) |
| 色温Color Temperature | 3500K/6500K | 3500K/6500K | 3500K/6500K | 3500K/6500K | 3500K/6500K |
| 显色指数Color Rendering Index | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 | Ra＞80 |
| 光源寿命Light Source Life | 50000h | 50000h | 50000h | 50000h | 50000h |
| 环境温度Working Temperature | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ | - 40℃～+ 50℃ |
| 相对湿度Working Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| 材料Housing ＆Lampshade | 铝合金aluminium alloy | 铝合金aluminium alloy | 铝合金aluminium alloy | 铝合金aluminium alloy | 铝合金aluminium alloy |
| 防护等级IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| 灯具颜色Color | 银灰silver gray | 银灰silver gray | 银灰silver gray | 银灰silver gray | 银灰silver gray |
| 外形尺寸Size | 361X196X63(mm) | 649X303X81(mm) | 649X303X81(mm) | 648X381X81(mm) | 649X303X81(mm) |
| 包装尺寸Package Dimension | 490X430X240(mm)(4pcs) | 700X365X140(mm) | 700X365X140(mm) | 700X440X140(mm) | 700X365X140(mm) |
| 安装方式Installation | 悬挑式O.D.Φ48(mm) | 悬挑式O.D.Φ60(mm) | 悬挑式O.D.Φ60(mm) | 悬挑式O.D.Φ60(mm) | 悬挑式O.D.Φ60(mm) |
| 毛重G.W/净重N.W | 14.8kg (4pcs)/3.3kg | 9.2kg/9.1kg | 9.4kg/9.2kg | 10.1kg/9.7kg | 23kg/21.6kg |

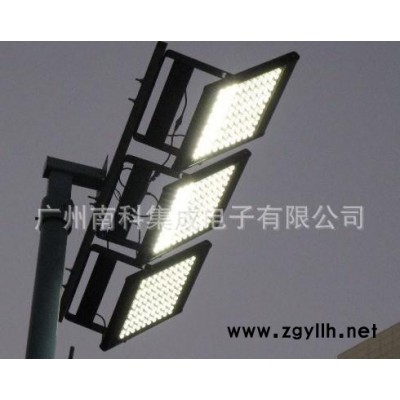

| 产品名称 Name | LED隧道灯 Tunnel Lights LED投光灯Flood Wall light Head |
| 产品型号 Part Number | DS2-L120 (NKU-08-120/2-TD ,NKU-08-120/2-WD ) |
| 输入功率 Input Power | 160W |
| 光源光通量 Lamp Flux | 12800 lm |
| 输入电压 Voltage | 90VAC~260VAC |
| 工作电流 Current | 400mA |
| 工作频率 Frequency | 50Hz / 60Hz |
| 功率因数 AC Power Factor | 98% |
| 有效功率 DC Power Efficiency | 94% |
| 色 温 Color Temperature | 4500K～ 6500K |
| 显色指数Color Rendering Index | Ra＞80 |
| 光源寿命 Light Source Life | 50000 h |
| 环境温度 Working Temperature | - 40℃～ + 50℃ |
| 相对湿度 Working Humidity | 10% ~ 90% |
| 材 料 Housing ＆ Lampshade | 铝合金aluminium alloy |
| 防护等级 IP Rating | IP67 |
| 灯具颜色 Color | 银灰silver gray |
| 外形尺寸 Size | 648×380×81 |
| 净 重 N.W | 9.5 kg |
