材质 | 不锈钢 |
---|---|
电压 | 220v |
功率 | 100W |
类型 | LED景观灯 |
光源类型 | led,LED ,LED,LED灯 |
主要适用范围 | 停车场 |
品牌 | 雷舒照明 |
型号 | LS-BG100 |
加工定制 | 是 |

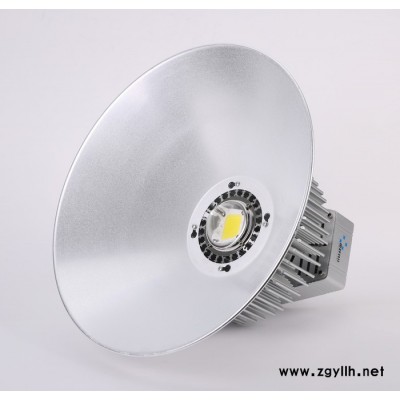

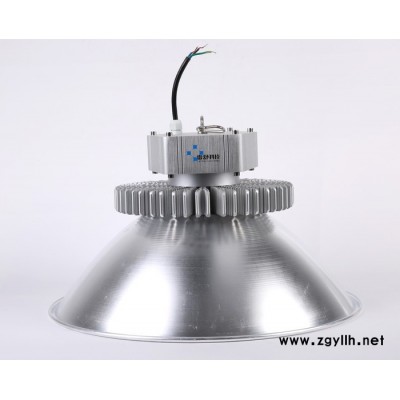

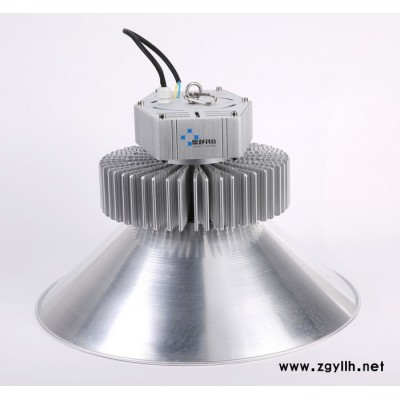

产品型号 Model:LS-PG100
光源功率 Rated Power:100W
驱动电源 Driver:明纬、茂硕、英飞特、飞利浦(可选)MEAN WELL、MOSO INVENTR、PHILIPS(optional)
光源品牌 LED Chip:CREE(美国科锐)
电源效率 Driver Efficiency:≥90%
输入电压 Input Volt:AC90V~305V
工作电压 Working Volt:DC42~48V
工作电流 Working Current:2800mA
散 热 器 Heat sink:雷舒**散热技术 LS patent heat sinking technology
电 器 盒 Electrical box:航空铝 Alloy Aluminum
光学配光 Optical light distribution:高硼硅玻璃光学透镜 The high borosilicate glass optical lens
整灯材质 Material:航空铝 Alloy Aluminum
表面处理 Surface treatment:阳极氧化处理 Anodic oxidation treatment
净 重 Net weight:4.9kg
包装尺寸 Packing size:325mm×325mm×255mm
安装方式 Installation:链条吊装/水管硬链接 Chain hoisting/pipe hard links
显色指数 CRI(color rendering index):Ra≥70
LED 数量 LED Amount:56PCS*1-3W
LED 光效 (lm/W)LED Efficacy:114-122lm/w
光源寿命 Lifetime of LED Chip:≥50000H
防护等级 IP Grade:IP64
LED 结温 LED Junction Temp:≤150℃
储藏温度 Storage temp:—30~50℃
工作温度 Working temp:—35~55℃
质量保证 Warranty:5年 5years
光 通 量 (lm)Luminous Flux:12312~13176lm
导热材料 Thermal conductive materials:道康宁 DOWCORNING
LED 色温 LED Color Temp:5000~6500K
灯罩角度 Chimney Angle:30°/45°/60°/90°/120°
毛 重 Gross weight:5.7kg
包装材料 Packaging materials:外盒:瓦楞纸盒 内防撞包装:EP EP alert: corrugated carton anti-collision packaging EP
灯罩处理 Chimney processing:哑光喷砂,可选喷涂及其他方式 Matte sandblasting, optional spraying and other methods
