电压 | 220 |
---|---|
类型 | 防爆荧光灯 |
光源类型 | 节能灯管 |
光源功率 | 36 |
防护等级 | IP54 |
主要适用范围 | 1区,2区危险场所 |
品牌 | 中普 |
型号 | DYC(T8)系列隔爆型防爆节能荧光灯(ⅡB) |
适用范围 Application
1、适用于1区、2区危险场所;
2、适用于ⅡA、ⅡB类.温度组别为T1~T6的
3**性气体环境。
1、Canbe used in hazardous areas:Zone 1 and Zone 2.
2、Can he used in explosive gas atmospheres of
3、Calegory ⅡAand ⅡB where the temperature classifieation is T1~T6.
型号含义 Model implication
主要技术参数 Main technical parameters
1、执行标准:GB3836.1-2000、GB 3836.2-2000、lEC60079
2、防爆标志:ExdⅡBT6
3、额定电压:AC220V/50Hz
4、防护等级:IP54
5、防腐等级:WF1
6、引人口规格:G1/2”
7、电缆规格:Φ6mm~Φ10mm
8、配装光源及功率:T8节能灯管
1×40W、2×40W
9、单、双管带应急功能参数:充电时间24h
应急起动时间0.3s
应急照明时间90min
产品特点 Features
1、壳体采用铝合金精密压铸成型,表面高压静电喷塑;
2、新式结构便于更换灯管,只需拧下端盖,抽出灯管即可进行更换;
3、节能灯管经**检测中心测试节能39.53%;
4、采用电子镇流器,装于灯架内,功率因数高达95%以上;
5、应急电源为免维护隔镍电池组;
6、应急装置在正常条件下自动充电.断电时应急灯自动点亮;
7、钢化玻璃灯罩.不锈钢外露紧同件;
8、钢管或电缆布线。
1、The housing is die cast in aluminum alloy,with high voltage static plastic-sprayed surface.
2、Convenience in changing the tube,only ln remove the end cover and tube.
3、The energy-saving lamp tube can save energy as high as 39.53% under the test hy national inspection&test center;
4、It adopts electronic ballast that is mounted in the lamp bracket, the power factor is higher than 95%;
5、The emergency power is provide by maintcnantce-free Cd-Ni haltery.
6、Emergency device is automatically charged under normal conditions,the emergency lamp goes on automatically once power is cut off;
7、Lampshade of tempered glass, stainless exposed fastener.
8、Conduit wiring or cable wiring.

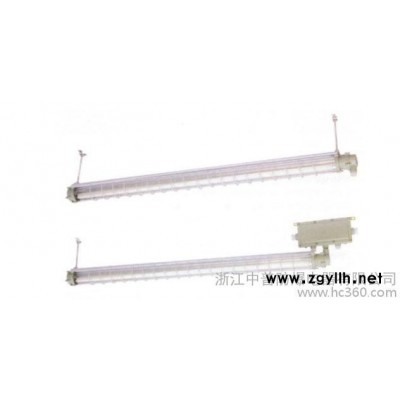

外形及安装举例 Outline and mounting example
订货须知 Ordering references
按产品型号说明逐条选择,例:需要T8节能灯管2X40W,护栏式安装,则产品型号为DYC(T8)-2×40h;
带应急装置的DYC(T8)系列隔爆型防爆节能荧光灯,只有吸顶式和吊杆式两种安装方式。
Select item by item according to description of product model,for example,ifyou require hi-pin lamp pipe of 2X40W,fence type installation,the product model shall be DYC(T8)-2X40h;
With emergency derice DYC(T8)type flame-proof explosion-proof fluorescent lamp of mounting mode are ceiling and pendant.
